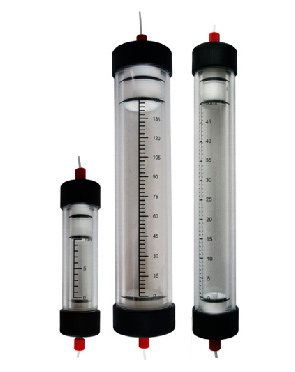

主頁Bigloop 超級定量環
Bigloop 超級

產品特性

適用于大體積或反復多次上樣

內部動態密封結構確保樣品不受污染

可與1/16接頭和1/8接頭連接

最大操作壓力10bar

三種規格可選:
10ml(Bigloop10)、 50ml(Bigloop50)、 150ml(Bigloop150)

技術規格

Operating Method

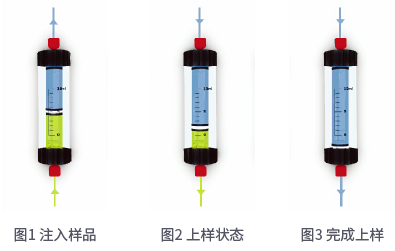

Connect the Bigloop to the injection valve, first fill it with buffer liquid Then use the injection syringe to put the sample in the Bigloop from the bottom by hand or sample pump.(as show in picture 1.) Push the piston down through infusing buffer solution, , then infuse the sample into the column .The piston is sealed ,which can stop the mixture of buffer and sample.(as show in picture 2.)When the piston move to the bottom place, the buffer liquid will enter into the system through by-pass channel.(as show in picture 3.)

初始緩沖液的裝入方法

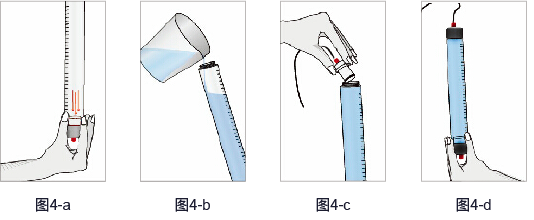

首先將上端的內端塊和外蓋拆卸下來,把活塞移動到底部,之后把緩沖液緩緩的倒入玻璃管內。接著把內端塊和外蓋裝上,盡量使里面沒有氣泡(如圖4)。
